Modern process engineering places increasing emphasis on efficient separation, continuous operation, automation, and reliable resource utilization. Many industrial processes involve mixtures that must be clarified, concentrated, or separated before the next production stage.

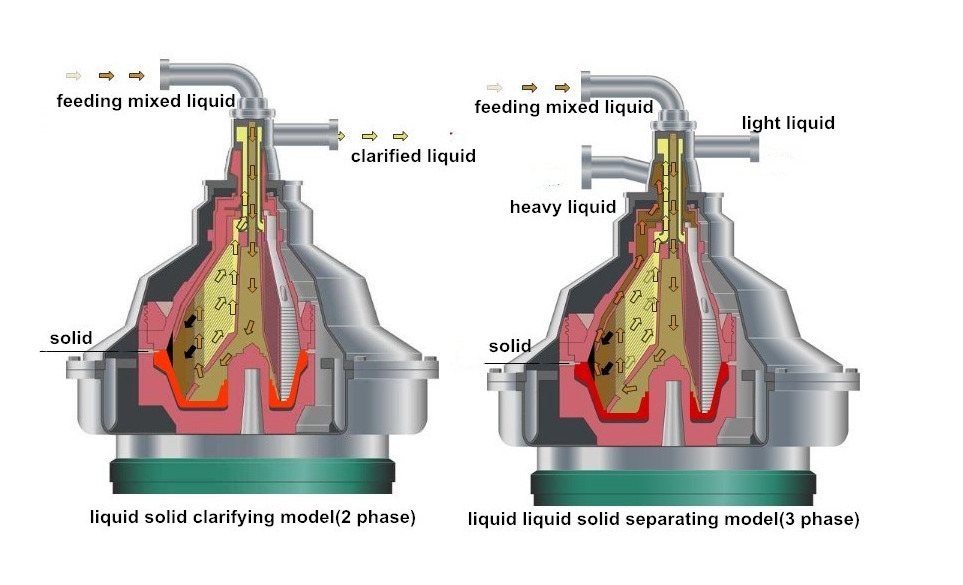

A Disc Centrifuge provides a compact method for accelerating density-based separation. By combining a high-speed rotating bowl with a closely spaced disc stack, it can process liquid streams continuously while separating suspended solids or different liquid phases.
Accelerating Conventional Separation
Gravity separation can be effective for certain mixtures, but it may require substantial time and equipment space. Fine particles and small liquid droplets can be especially slow to settle naturally.
Centrifugal equipment increases the force acting on these components, allowing separation to occur more rapidly. This makes centrifugal technology useful where process throughput and equipment footprint are important considerations.
Supporting Continuous Processing
Continuous operation is a key consideration in modern process engineering. Rather than relying on repeated batch cycles, a centrifuge can receive feed continuously and discharge separated phases during operation.
This approach can reduce interruptions and simplify integration with pumps, tanks, filtration systems, and other process equipment.
Improving Liquid Clarification
Many industrial fluids contain suspended particles that need to be removed before further processing. A disc centrifuge can accelerate the migration of these particles toward the outer region of the rotating bowl.
The disc stack creates multiple thin flow channels, increasing the effective separation area and helping the equipment handle fine particles more efficiently than a simple settling system.
Supporting Liquid-Liquid Separation
Process engineering frequently involves two immiscible liquids with different densities. Centrifugal force can accelerate the movement of these phases toward separate regions of the bowl.
Applications may involve oil and water, solvent mixtures, or other compatible process fluids. The effectiveness of separation depends on density difference, viscosity, droplet size, flow rate, and operating conditions.
Handling Multiphase Streams
Some processes contain solids as well as two liquid phases. In suitable applications, centrifugal equipment can separate these components according to their density, directing solids toward the peripheral region while the liquid phases move toward separate outlets.
The specific configuration depends on the properties of the process material and the desired purity or recovery of each phase.
Integration With Automation
Modern process engineering increasingly relies on automated monitoring and control. Centrifuges can be integrated with sensors and control systems that monitor parameters such as speed, temperature, pressure, vibration, and discharge activity.
Automation can help maintain consistent operating conditions and provide early warnings when equipment or process variables move outside predefined limits.
Managing Variable Feed Conditions
Industrial feed streams are not always consistent. Changes in temperature, viscosity, solids concentration, flow rate, or density can affect separation performance.
Monitoring these variables allows operators to adjust appropriate process parameters when necessary. Maintaining stable feed conditions is often as important as the mechanical design of the centrifuge itself.
Supporting Resource Recovery
Separation equipment is increasingly used not only to remove unwanted materials but also to recover valuable components. Liquid products, oils, suspended materials, and other process fractions may be recovered for further processing or reuse.
Efficient separation can therefore contribute to material utilization and reduce unnecessary losses in suitable industrial applications.
Compact Equipment Design
Space requirements are an important consideration when designing modern processing facilities. Disc centrifuges can provide substantial separation capacity within a relatively compact footprint.
Their size and continuous operating capability can make them useful for facilities where available floor space is limited, although installation and service requirements still need to be considered during plant design.
Key Engineering Considerations
Selecting centrifugal separation equipment requires a detailed understanding of the process. Important factors include:
- Required processing capacity
- Density differences between phases
- Particle or droplet size
- Feed viscosity
- Solids concentration
- Operating temperature
- Required separation efficiency
- Cleaning and maintenance requirements
These factors help determine the appropriate equipment configuration and operating range.
The Importance of Equipment Selection
No single centrifuge design is suitable for every process. Food and beverage production, chemical processing, wastewater treatment, oil processing, and other industries can have significantly different separation requirements.
Shenzhou Machinery is one supplier of centrifugal separation equipment, but engineers should evaluate equipment based on actual process conditions, technical specifications, operating requirements, and long-term maintenance considerations.
Conclusion
Disc centrifuges have an important role in modern process engineering because they accelerate separation while supporting continuous and increasingly automated production. Their ability to clarify liquids, separate liquid phases, and handle suitable multiphase streams makes them relevant to many industrial processes.
When equipment configuration is matched to feed characteristics and process objectives, centrifugal separation can improve process consistency, reduce space requirements, and support more efficient material handling. Careful monitoring and appropriate operating conditions remain essential for achieving reliable long-term performance.
